Product Description
Aluminum Multi-Hub Conduit Body, Cover and Gasket Assemblies, 1.50 IN Trade Size
Warehouse Availability for this Item
6
0
0
Furbay Electric
6
St Clairsville
0
Mansfield Electric
0
1-1/2 IN ALUM LC BDY CVR GSKT
Part # : EGSLC150DCGSST
$
58.57
Product Specifications
- Main Menu: Electrical
- Manufacturer: Appleton Electric Co.
- Brand Name: Appozgcomm
- Sub Brand: Neer
- Type: Conduit Body
- Special Features: 1-1/2 in Trade Size, Type Lc Aluminum Conduit Furnished With Threads and Set Screws, Maximum No. of Conductors 3 - #1/0 Awg, Volume 33.50 In³, Furnished With Stamped Aluminum Cover and Neoprene Gasket, for Use With Rigid, Imc and Emt Conduit
- Application: Provides Access to the Interior of the Raceway for Wire Pulling , Splicing and Maintenance, Allows Connection of Straight and Branch Conduit Runs and 90 Degree Bends
- Finish: Epoxy Powder Coat
- Standard: Ul Standard: 514a; Ul Listed: E53330; Csa Standard: c22.2 No. 18.3; Csa Certified: 208044; Nema: Fb-1
- Height: 2.97
- Hub Size: 1-1/4 In
- Material: Die Cast Aluminum
- Width: 3.5 In
- Length: 7.89 In
Item Specification

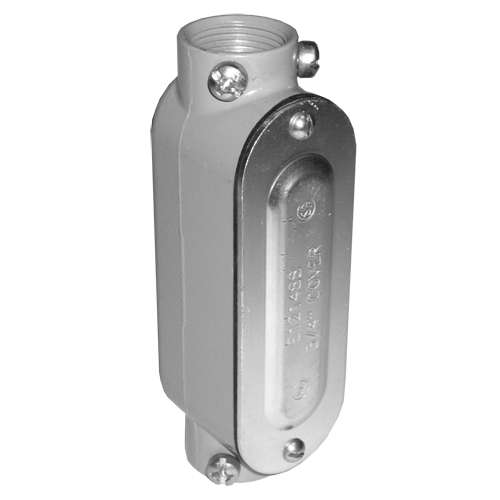

Item Image
