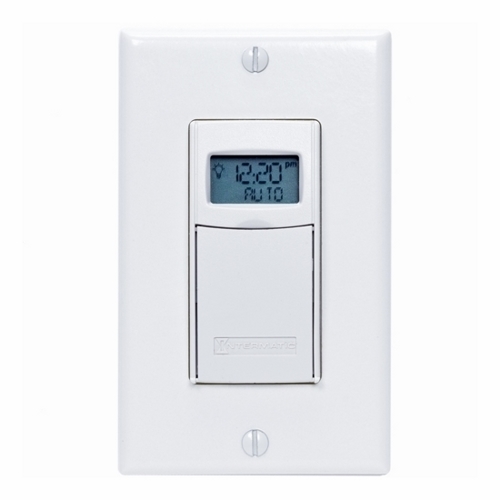

DIGTL 7D ASTRO TIMER 20A 24-277V WHITE

Part # : INMEI600WC

Availability: 12
$ 176.86
add to cart

Product Description

The DIGTL 7D ASTRO TIMER 20A 24-277V WHITE The EI600 features up to 40 ON/OFF programmed events per week and an automatic daylight saving time adjustment. It controls AC and DC up to 277V and has an astronomic feature which can be combined with specific ON/OFF programming. Convenient program capabilities are designed to suit any lighting schedule. All programs are securely stored in non-volatile memory and backed up by a CR2 lithium battery. The timer is compatible with single-pole and 3-way incandescent, fluorescent, CFL, and LED bulbs and requires no neutral wire. With robust performance and an abundance of features, the EI600 is the number one choice for in-wall timers.

Product Specifications

  • Main Category: Electronic Time Switches
  • Main Menu: Electrical
  • Manufacturer: Intermatic
  • Brand Name: Intermatic
  • Type: Digital in-Wall 7-Day Astronomic
  • Special Features: Features: Auto Daylight Saving Time Adjustment, Low Battery Indicator, Cr2 Lithium Battery Provides a Minimum of 2 Years of Time Keeping Without Ac Power, Manual Override Feature, User Program Selections Are Stored in Non-Volatile Memory, 5 Year Warranty
  • Wattage: 5540 Wtt
  • Application: Incandescent Lighting, Fluorescent Lighting, Hvacr, Cfl Lighting, Led Lighting
  • Voltage Rating: 120 - 127 Vac, 12 - 18 Vdc
  • Amperage Rating: 15/20 Amp
  • Standard: Ccsaus Certified, California Title 24 Compliant, Hvacr, Title Ca 20 Listed
  • Size: 2.75 Height X 1.75 Width X 1.36 Depth In, 69.85 Height X 44.45 Width X 34.54 Depth Mm
  • Mounting: Wall Mount
  • Contact Configuration: 1 No
  • Contact Rating: 20 Amp @ 120 - 277 Vac (Resistive Heater), 15 Amp @ 120 Vac (Tungsten Incandescent), 6 Amp @ 208 - 277 Vac (Tungsten Incandescent), 16 Amp @ 120 - 277 Vac (Ballast Magnetic), 4 Amp @ 12 Vdc (Dc Loads), 2 Amp @ 28 Vdc (Dc Loads)
  • Action: 1 X Spst
  • Number Of Poles: 1
  • Operating Temperature: +32 to +122 Deg F, 0 to +50 Deg C
  • Timing Range: 1 Min - 7 Days
  • Wall Plate Color: White
  • Timer Duration: 7 Days
  • Motor Power: 1 Hp @ 120 Vac, 2 Hp @ 240 Vac
