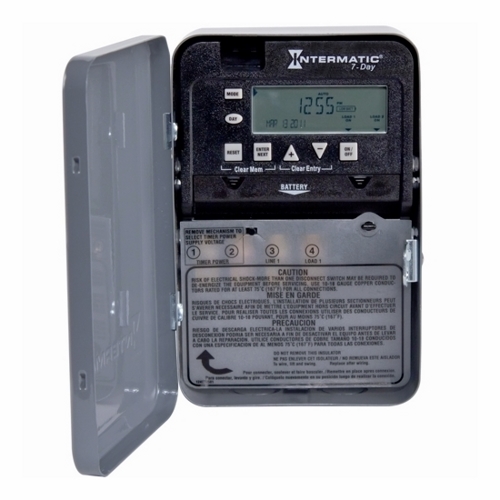

7D 30A SPST 120-277V NEMA1

Part # : INMET1705C

image description Availability: 1
$245.67

Product Description

The 7D 30A SPST 120-277V NEMA1 7-Day Electronic Time Switch features independent 7-day programming to provide flexibility for applications where load switching differs each day of the week. These time switches provide dependable and uncomplicated performance, plus to-the-minute programming for accurate load control and reduced energy costs. Up to 28 setpoints or events can be preset to automatically repeat. The program can be disabled at any time by placing the time switch in the Manual operating mode. Control buttons provide manual control of each circuit independently regardless of the operating mode. Each time switch is housed in a lockable enclosure to protect against vandalism and unauthorized tampering.



Product Specifications

  • Main Category: Intermatic
  • Main Category: Electronic Time Switches
  • Main Menu: Electrical
  • Manufacturer: Intermatic
  • Manufacturer: Intermatic Inc. -Imk
  • Brand Name: Intermatic
  • Type: Electronic
  • Special Features: Features: 7-Day, Multi-Voltage, Battery Backup, 1 Year Warranty, Automatic Adjustment for Daylight Saving Time
  • Application: Indoor, Hvacr, Industrial
  • Voltage Rating: 120 - 277 Vac
  • Amperage Rating: 30 Amp
  • Enclosure: Nema 1 Steel
  • Standard: Ccsaus Certified, California Title 24 Compliant, Hvacr, Title Ca 20 Listed
  • Connection: Teeter Type
  • Mounting: Wall Mount
  • Frequency Rating: 50/60 Hz
  • Contact Configuration: 1 No
  • Contact Rating: 30 Amp @ 120/240 Vac (Resistive No), 20 Amp @ 28 Vdc (Resistive No), 30 Amp @ 120/240 Vac (Inductive No), 5 Amp @ 120/240 Vac (Tungsten No), 20 Amp @ 120 - 277 Vac (Ballast No)
  • Action: 1 X Spst
  • Number Of Poles: 1
  • Operating Temperature: -40 to +155 Deg F, -40 to +68 Deg C
  • Timing Range: 1 Min - 6 Days 23 Hr 59 Min
  • Timer Duration: 7 Days
  • Motor Power: 1 Hp @ 120 Vac (No), 2 Hp @ 240 Vac (No)
