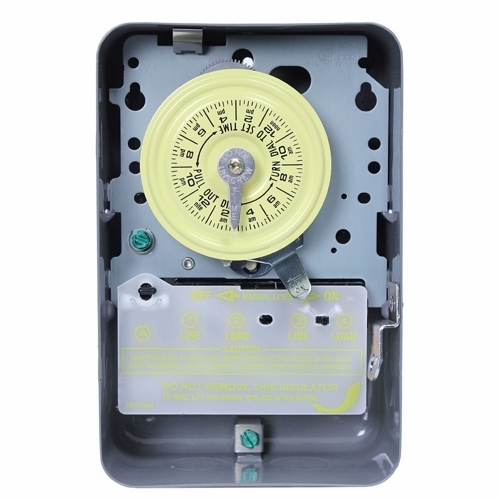

NEMA 1 - 208-277 V 5HP DPST

Part # : INMT104

image description Availability: 1
$87.31

Product Description

The NEMA 1 - 208-277 V 5HP DPST The heavy duty mechanical time switch is designed for industrial, commercial and residential applications. Features a high horsepower rating that is ideal for loads up to 40 amps resistive from 120-volts and direct 24-hour time switch control of most loads. All models are equipped with one "ON" and one "OFF" tripper. The unit contains a 1-circuit standard On/Off Double Pole Single Throw 40 Amps, 4000 watt capacity, 120 volts.

Product Specifications

  • Main Category: Intermatic
  • Main Category: Mechanical Time Switches
  • Main Menu: Electrical
  • Manufacturer: Intermatic Inc. -Imk
  • Manufacturer: Intermatic
  • Brand Name: Intermatic
  • Type: Electromechanical
  • Special Features: Features: Provides Direct 24-Hour Control of Most Loads, 1 to 12 On/off Operations Each Day, Minimum On/off Times of 1 Hour, Manual Override, 1 Year Warranty
  • Wattage: 3 Wtt
  • Application: Commercial, Industrial, Residential, Indoor, Hvacr
  • Voltage Rating: 208 - 277 Vac
  • Amperage Rating: 40 Amp
  • Enclosure: Nema 1
  • Standard: Ccsaus Certified, Hvacr
  • Size: 5 Length X 3 Width X 7-3/4 Height In, 12.70 Length X 7.62 Width X 19.69 Height Cm
  • Connection: Teeter Type
  • Mounting: Wall Mount
  • Frequency Rating: 60 Hz
  • Contact Configuration: 2 No
  • Contact Rating: 40 Amp @ 120 - 480 Vac (Resistive), 40 Amp @ 120 - 277 (Tungsten)
  • Action: Dpst
  • Number Of Poles: 2
  • Operating Temperature: -40 to +130 Deg F, -40 to +54 Deg C
  • Timing Range: 24 Hr
  • Timer Duration: 24 Hr
  • Motor Power: 2 Hp @ 120 Vac, 5 Hp @ 240 Vac
  • Pilot Duty: 1000 Va @ 120 - 277 Vac
