P/C, ELEC, SIDE LENS, STEM MNT

Part # : INMEK4136S

image description Availability: 17
$ 44.31
add to cart

Product Description

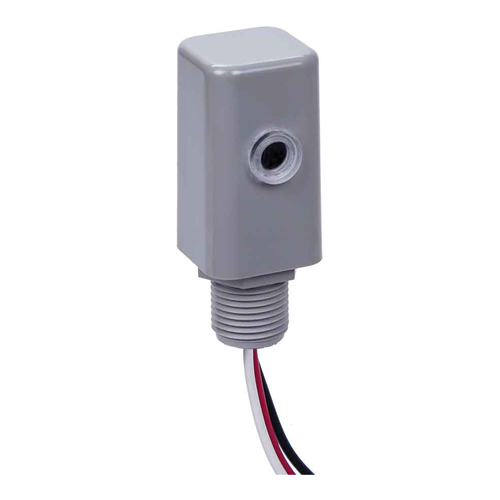

The Electronic Photo Control - Side Lens - Stem Mount Improved ON/OFF switching with high quality relays. Zero-crossing electronic circuitry for extended life. Employs electronic components exclusively selected to meet extended life targets. Conformal coated PCB assemblies for long term.

Product Specifications

  • Main Category: Photocontrols
  • Main Menu: Electrical
  • Manufacturer: Intermatic
  • Brand Name: Intermatic
  • Type: Stem Style Photocell
  • Special Features: Features: Long Life, Electronic Photocell, Zero-Cross Technology, Led Fixtures Totaling 1650 W @ 277 Vac, Fail Mode: On, Side Lens, Uv Stabilized
  • Application: Dusk to Dawn Lighting Control
  • Sensitivity: 1.5 Fc On, 2.25 Fc Off
  • Enclosure: Nema 410
  • Standard: Ansi c136.24 Compliant, Ul Certified to Us, Csa Certified to Canadian, Title Ca 20 Listed
  • Size: 1.3 Width X 1.24 Depth X 2.25 Height In, 33.02 Width X 31.49 Depth X 57.15 Height Mm
  • Connection: Color Coded Lead
  • Mounting: Stem Fixed Mount
  • Frequency Rating: 50/60 Hz
  • Dielectric Strength: 2500 Vac
  • Source: Electronic Control
  • Sensor: Solid State Photo Sensor (Silicon Ir Filtered)
  • Power Consumption: <0.5 Wtt @ 277 Vac
  • Supply Voltage: 105 - 305 Vac
  • Operating Temperature: -40 to +158 Deg F -40 to +70 Deg C
  • Operating Cycles: 10000
  • Timing Range: 2 - 5 S
  • Tungsten Watts: 1000 Wtt
  • Warranty: 8 Yr
  • Ballast Power Rating: 1800 Va
  • Connection Type: 1/2 in - 14 Npsm Thread
  • Electronic Ballast Current Rating: 6 Amp
  • OFF-On Ratio: 1.5:1
  • Joule Rating: 255 J
