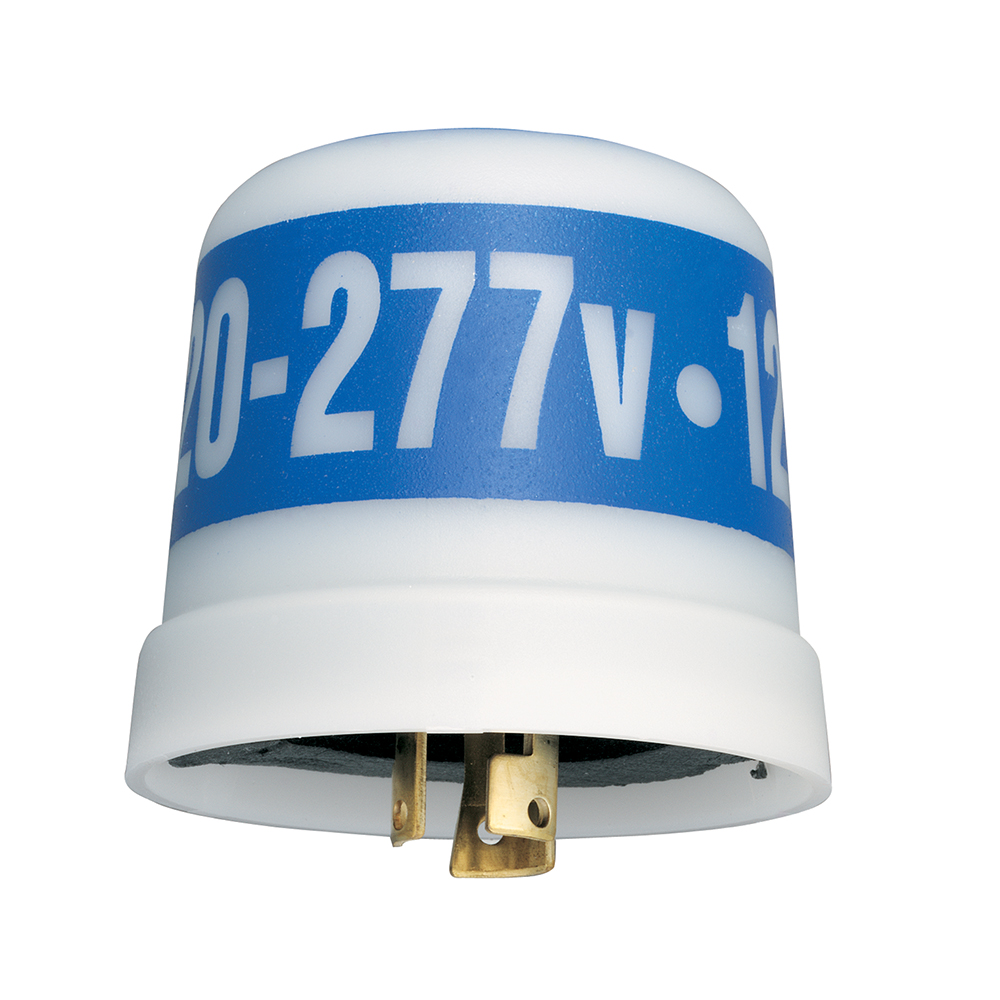

INTERMATIC LED4536SC

Part # : INMLED4536SC

Availability: Out of stock
$ 63.09
add to cart

Product Description


Product Specifications

  • Main Category: Photocontrols
  • Main Menu: Electrical
  • Manufacturer: Intermatic
  • Brand Name: Intermatic
  • Type: Twistlock Photocell
  • Special Features: Features: Electronic Photocell, Zero-Cross Technology, Led Fixtures Totaling 2220 Wtt @ 277 Vac, Non-Drifting Silicon Light Sensor Ir Filtered, Fail Mode: On
  • Application: Dusk to Dawn Lighting Control
  • Sensitivity: 1.2-3 Fc On, 2-5 Fc Off
  • Enclosure: Nema 410
  • Standard: Ansi c136.10, Ul Recognized, Culus Listed, Cas Approval, Title Ca 20 Listed, Rohs Compliant
  • Size: 2.97 Diameter X 2.721 Height In, 75.4 Diameter X 69.11 Height Mm
  • Connection: Lock Type
  • Mounting: Twistlock Mount
  • Frequency Rating: 50/60 Hz
  • Dielectric Strength: 2500 Vac
  • Sensor: Solid State Photo Sensor (Silicon Ir Filtered)
  • Power Consumption: <0.5 Wtt @ 277 Vac
  • Supply Voltage: 105 - 305 Vac
  • Operating Temperature: -40 to +158 Deg F -40 to +70 Deg C
  • Operating Cycles: 15000
  • Timing Range: 2 - 5 S
  • Tungsten Watts: 1000 Wtt
  • Warranty: 12 Yr
  • Ballast Power Rating: 1800 Va
  • Ballast Current Rating: 8 Amp
  • Connection Type: 3-Prong Plug
  • OFF-On Ratio: 1.5:1
