Product Description

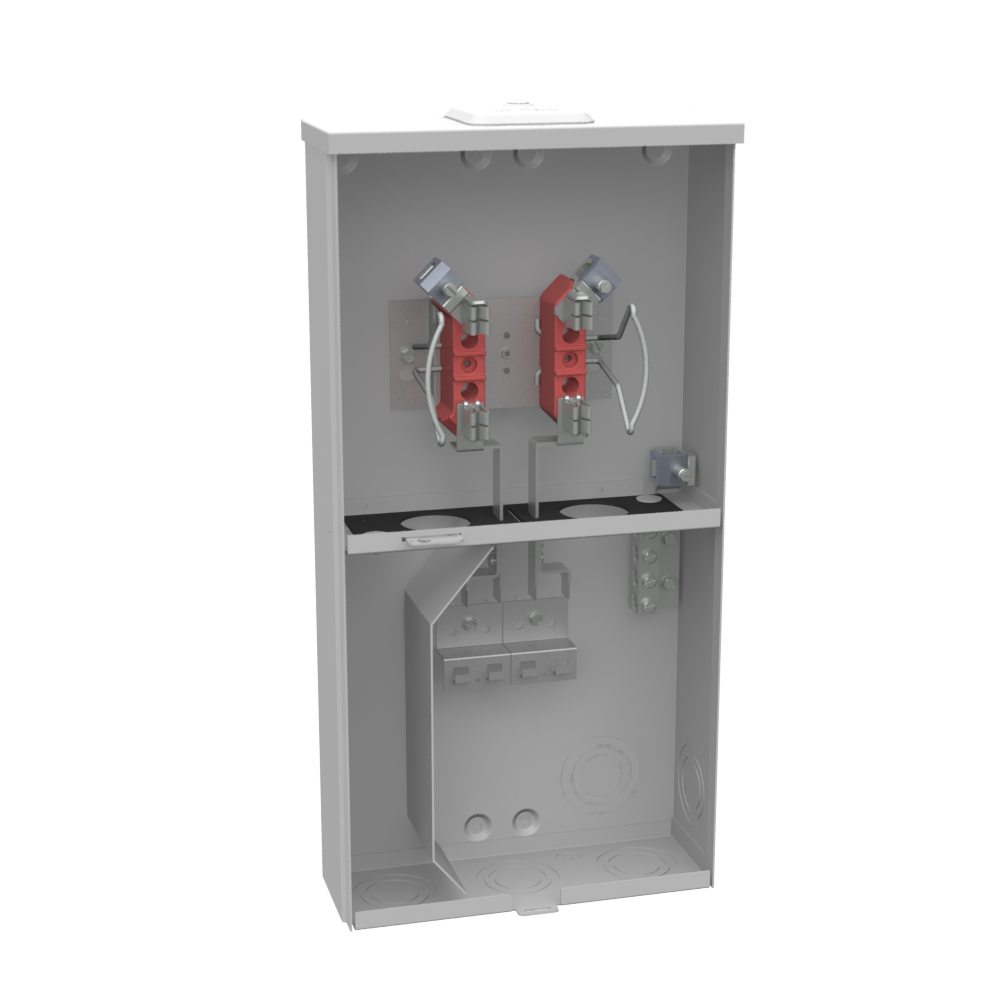

4 TERM RNGLS SML CLS PLT 3 BRANCH CKT
Warehouse Availability for this Item
0
0
Furbay Electric
0
St Clairsville
0
HOUSEPOWER UNITSLOAD CENTERS 13931
Part # : MILU3989XL
$
391.03
Product Specifications
- Main Category: Ringless Meter Socket
- Main Menu: Electrical
- Manufacturer: Milbank Manufacturing Co
- Brand Name: Milbank
- Type: Ringless Meter Socket
- Cable Entry: Overhead and Underground
- Special Features: 4 Terminal, Small Hub Opening, No Bypass, 1 Position, 4 Branch Circuits
- Bypass Type: No Bypass
- Application: Meter Socket With Main
- Voltage Rating: Up to 240 Volts Alternating Current
- Amperage Rating: 100 Ampere Continuous
- Enclosure: Type 3r, G90 Galvanized Steel With Powder Coat Finish
- Standard: Ul Listed
- Mounting: Surface Mount
- Frequency Rating: 60 Hertz
- Hub Opening: Small Hub Opening
- Phase: 1 Phase
- Jaw Quantity: 4 Terminal
- Line Side Wire Range: 6 - 2/0 Awg
- Number of Meter Positions: 1 Position
- Terminal: Lay in Line Side and Single Mechanical Load Side
