AL COMP NARROW 700/750 kcmil 9/16-1-3/4

Part # : ILSALNN-700/750-12-134

Availability: 37
$ 220.63 BX
add to cart

Product Description

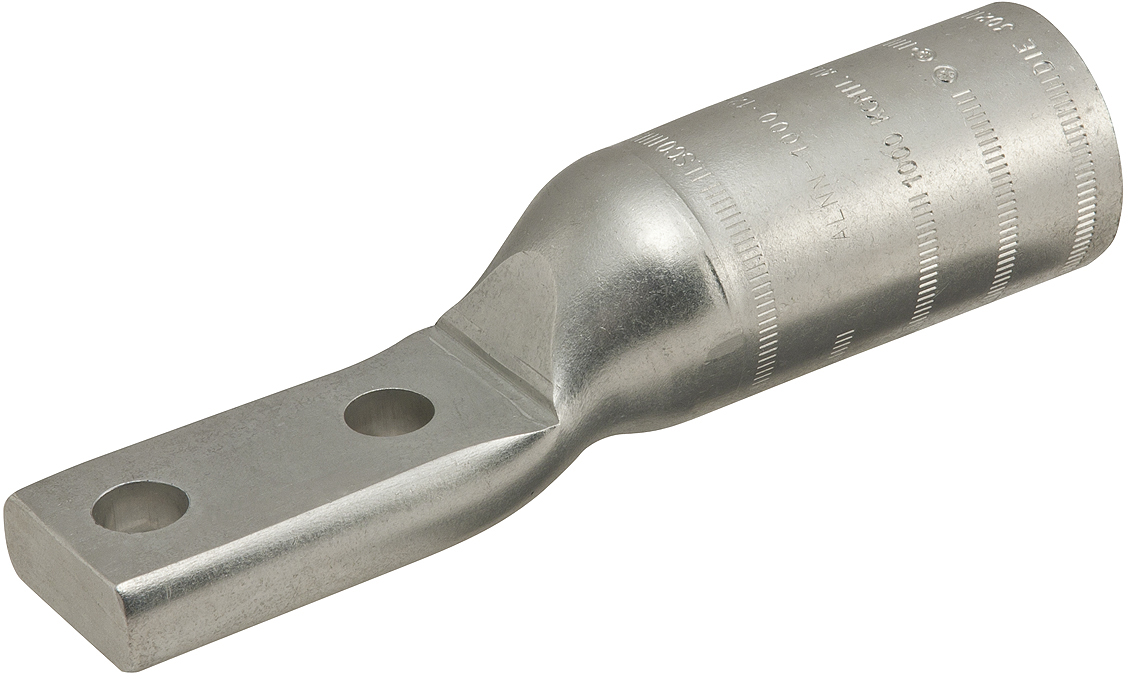

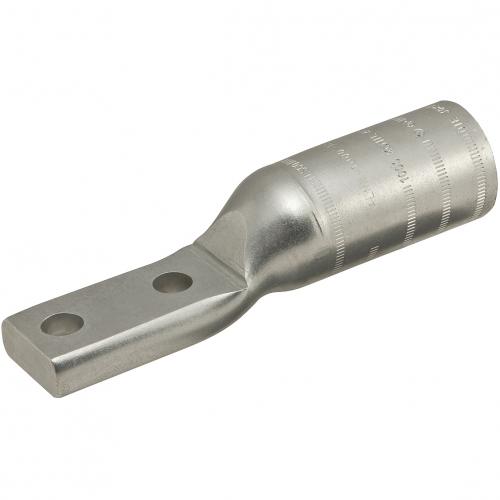

ILSCO AL COMP NARROW 700/750 kcmil 9/16-1-3/4 T UL CSA

Surecrimp Aluminum Compression Lug, Conductor Size 700/750, 2 Holes, 1/2in Bolt Size, 1-3/4in Hole Spacing, Narrow Tang, Long Barrel, Crimp connector for 700 and 750 kcmil


Product Specifications

  • Main Category: Wire or Cable Compression Connector
  • Main Menu: Electrical
  • Manufacturer: Ilsco
  • Brand Name: Ilsco
  • Sub Brand: Surecrimp
  • Type: Long Narrow Tang: Alnn
  • Special Features: features: {manufactured from high strength 1350 aluminum alloy.} {electro-tin plated.} {maximum conductivity and excellent crimping characteristics. narrow tongue width for limited space applications} {long barrel length with chamfered entry.} {color coded
  • Application: Terminating Connector
  • Voltage Rating: 600 V
  • Temperature Rating: 90 Deg C
  • Standard: Csa File Number: Lr-29601; Ul Specifications: Ul 486a-B; Ul File Number: E6207
  • Material: Al
