New
Warehouse Availability for this Item

120V 50/60Hz 1800W "T" FIX MOUNT

Part # : INMK4021C

image description Availability: 16
$10.33

Product Description

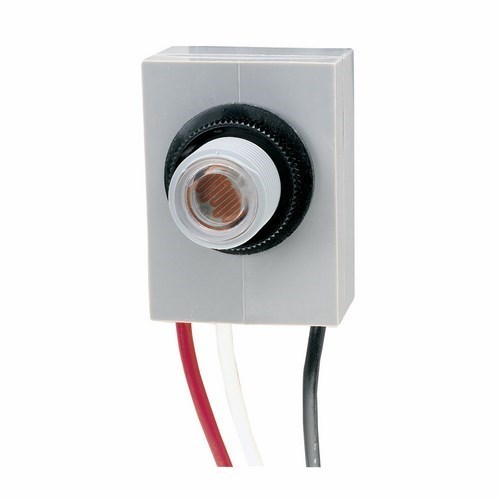

The 120V 50/60Hz 1800W "T" FIX MOUNT The K4000 Series Fixed Position Mounting Photo Controls are thermal-type photo controls that fit into a standard outlet box, post lamp, or wall pack. The photo controls provide dusk-to-dawn lighting control, along with a delay action, which eliminates loads switching OFF due to car headlights and lightning. The thermal-type controls feature a cadmium sulfide photocell and a sonic-welded polycarbonate case and lens to seal out moisture. The design utilizes a dual temperature compensating bi-metal and composite resistor for reliable long life operation over ambient temperature extremes.

Product Specifications

  • Main Category: Photocontrols
  • Main Menu: Electrical
  • Manufacturer: Intermatic
  • Brand Name: Intermatic
  • Type: Thermal Type Photo Cell
  • Special Features: Features: Cadmium Sulfide Photocell, Sonic-Welded Polycarbonate Housing, 9 in Wire Leads
  • Application: Dusk to Dawn Lighting Control
  • Color: Gray
  • Sensitivity: 1-5 Fc On, 3-15 Fc Off
  • Standard: Ul Recognized, Csa, Title Ca 20 Listed, California Title 24 Compliant
  • Size: 1-13/16 Length X 1-5/16 Width X 1-9/16 Depth In, 4.6 Length X 3.3 Width X 4 Depth Cm
  • Connection: Color Coded Lead
  • Mounting: Button Fixed Mount
  • Frequency Rating: 50/60 Hz
  • Source: Automatic Switching
  • Sensor: Thermal Type Photo Control (Cadmium Sulfide)
  • Power Consumption: 1 Wtt
  • Supply Voltage: 120 Vac
  • Operating Temperature: -40 to +158 Deg F -40 to +70 Deg C
  • Tungsten Watts: 1800 Wtt
  • Ballast Power Rating: 1000 Va
  • Tungsten Current Rating: 15 Amp
  • Ballast Current Rating: 8.3 Amp
  • Connection Type: 5/8 in - 18 Thread
